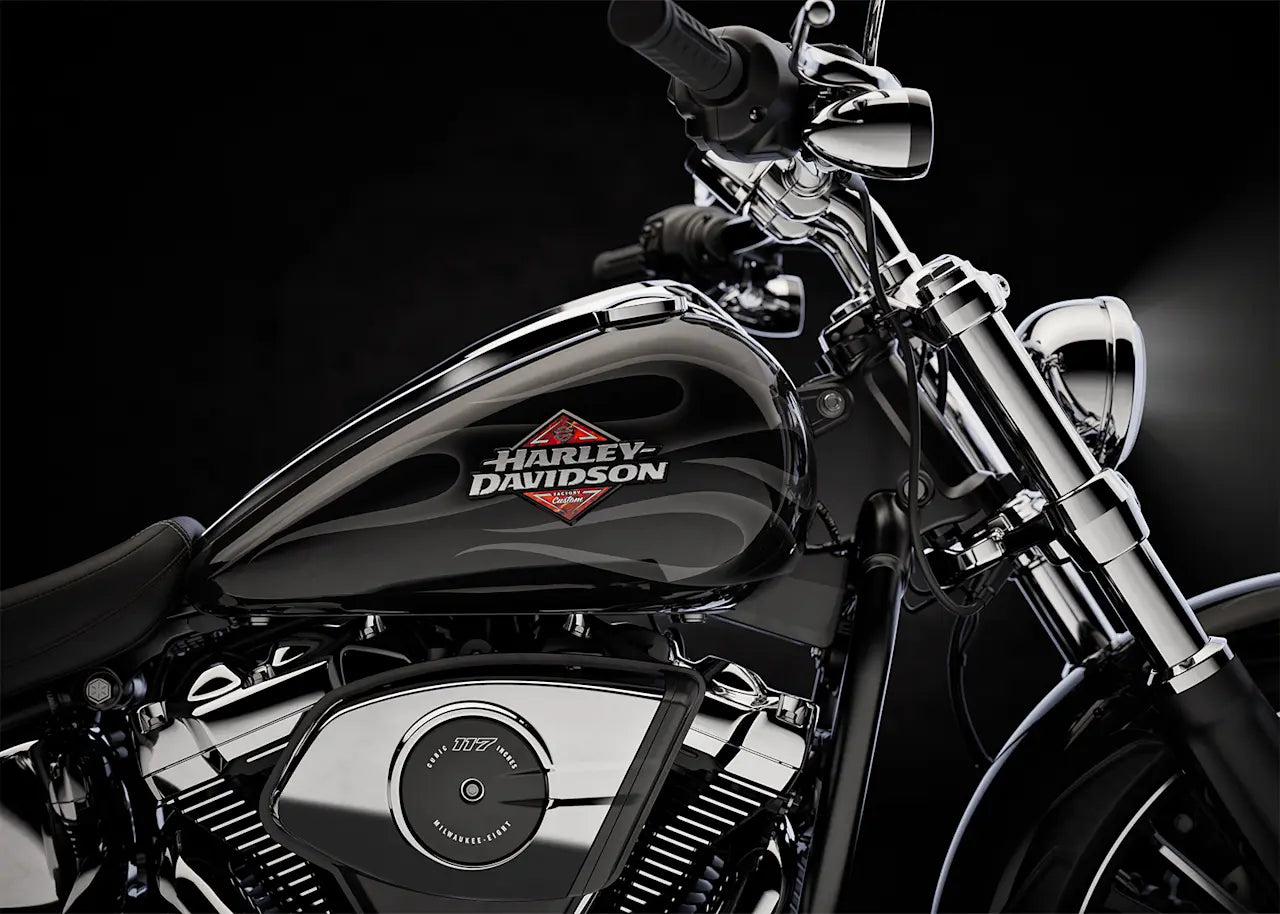

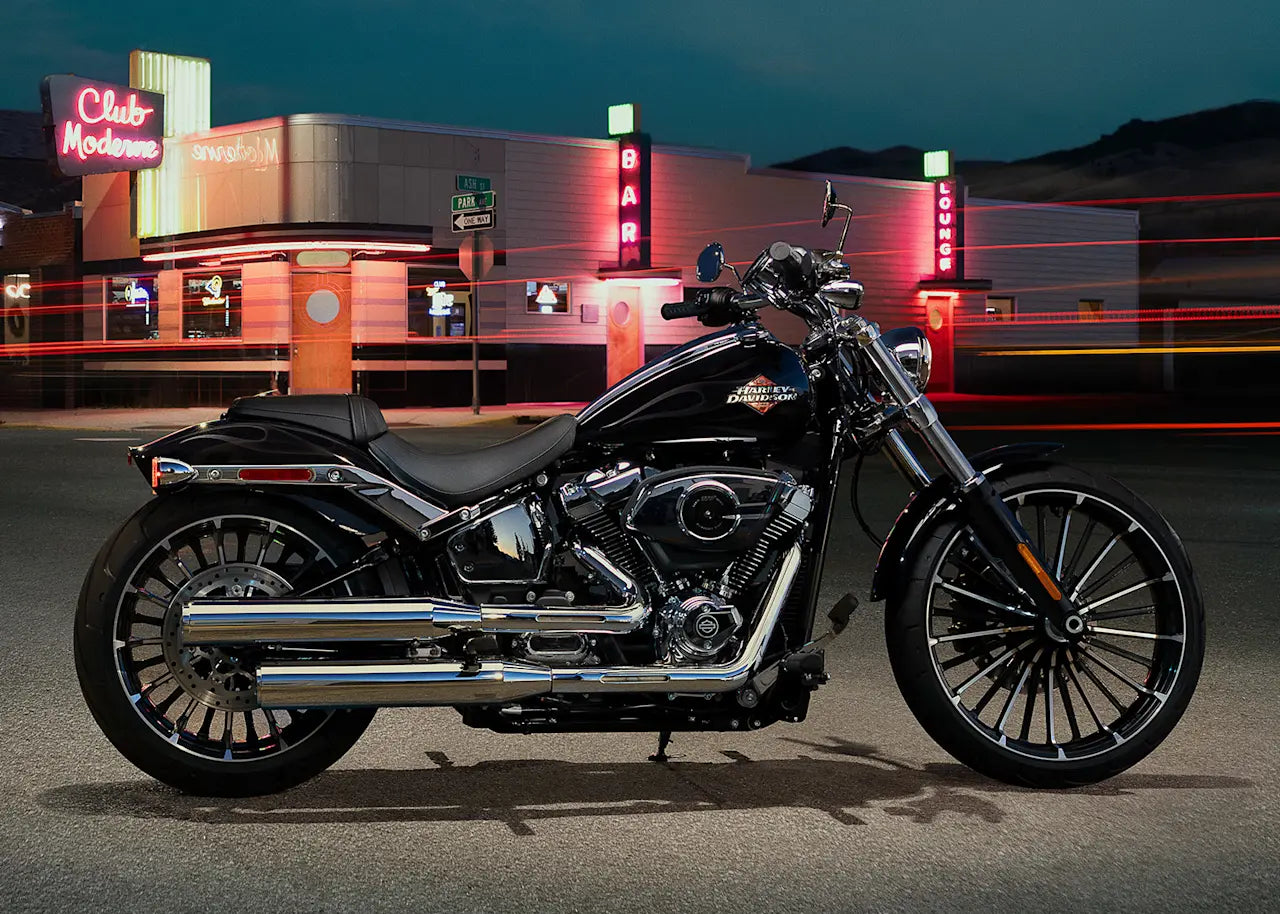

The Breakout™ 117 is a raked out cruiser dripping in chrome.

Riders looking for head-turning style and performance

Blasting through the city and block-beating passing power

Riders seeking Milwaukee-Eight™ 114 V-Twin and sharp handling

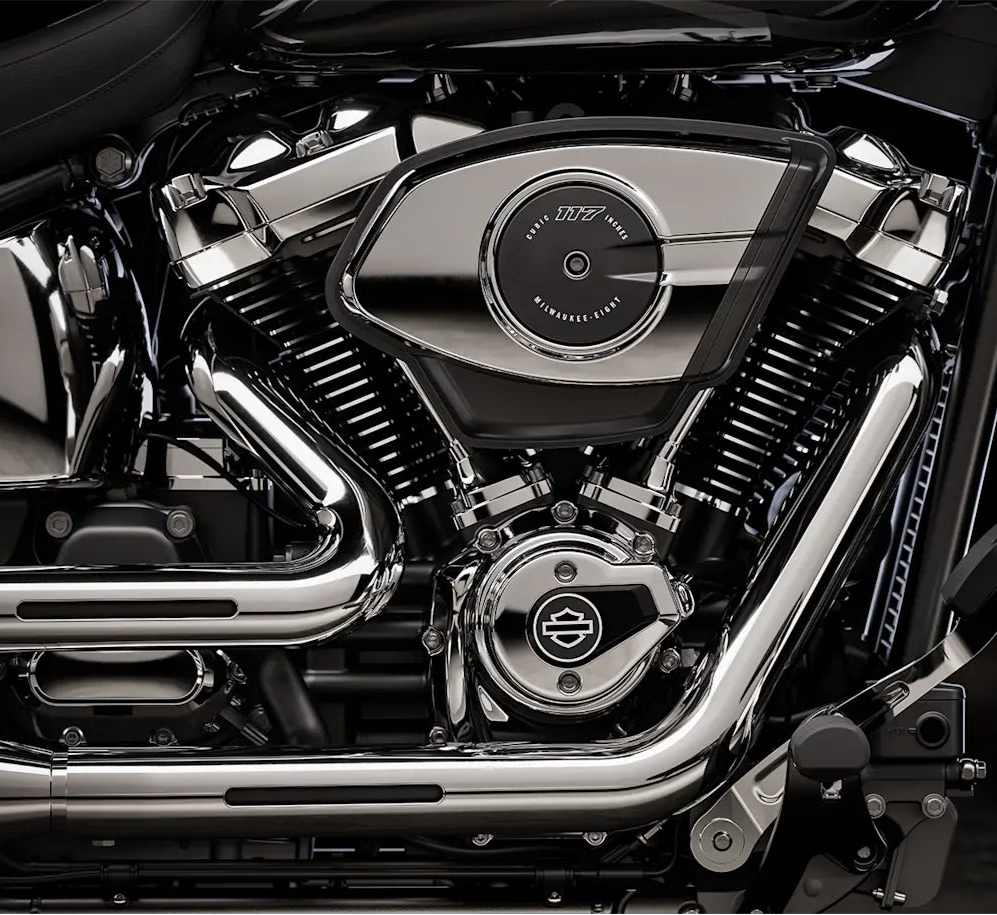

MILWAUKEE-EIGHT® 117 CUSTOM POWERTRAIN ENGINE
Get instant bragging rights on the street with this precision air/oil cooled engine that is the new pinnacle of torque and displacement in factory-installed, regular-production Harley-Davidson powertrains.

- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight® 117 Custom
103.5 mm
114.3 mm
1,923 cc
10.3:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-2 staggered; catalyst in muffler
Length
Width
Seat Height, Unladen
Ground Clearance
Rake
Trail
Wheelbase
Tyre, Type
Tyres, Front Specification
Tyres, Rear Specification
Fuel Capacity
Oil Capacity (w/filter)
Weight, In Running Order
Luggage Capacity -Volume
2,375 mm
940 mm
665 mm
115 mm
34
145 mm
1,695 mm
Michelin® Scorcher 11, front and rear
130/60B21,63H,BW
240/40R18,79V,BW
18.9 l
4.7 l
309 kg
310 kg
0.056 m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy
CO2 Emissions Testing Method
EC134/2014
168 Nm
3000
103 HP / 77 kW @ 5020 rpm
26.8
26.8
EU 134/2014
5.6 l/100 km
EU 134/2014
135 g/km CO2
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Brakes, Rotor Type
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Gloss black, 26-spoke cast aluminum
Gloss black, 26-spoke cast aluminum
4-piston fixed front and 2-piston floating rear
Front and rear black, Split 7-spoke floating rotors
Lights (as per country regulation), Headlamp,
Tail/Stop/Front Signal Lights
Gauges
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights: LED Bullet Turn Signals
102 mm (4-inch) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer
