A weekend escape machine for the rider who digs clean styling and craves outrageous performance.
THIS IS THE RIGHT BIKE FOR

Riders seeking West Coast style and unrelenting power

Outrageous performance with a matching attitude

FXRT devotees who want the latest riding enhancements

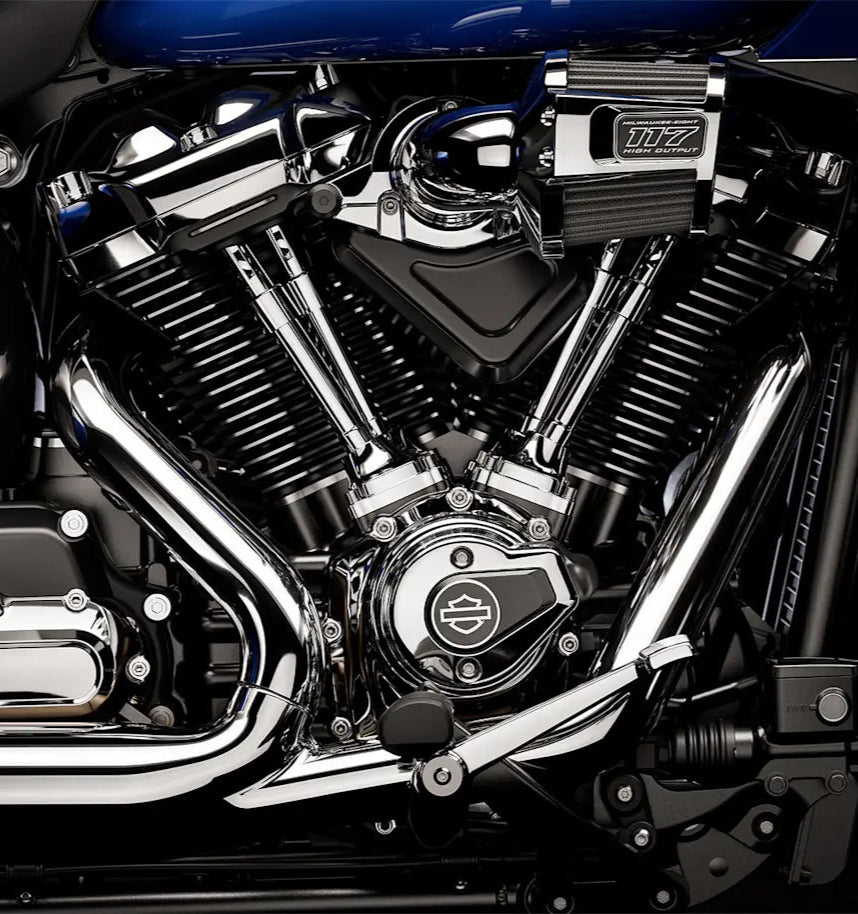

MILWAUKEE-EIGHT® 117 H.O. ENGINE
The new pinnacle of torque and displacement with a factory-installed powertrain. Precision oil/air cooling. 168 Nm of torque at 3500 RPM. Tuned heavy breather intake and high flow exhaust maximize engine performance, a boost you can feel with every twist of the throttle.

- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight® 117 High-Output
103.5 mm
114.3 mm
1,923cc
10.2:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-1; catalyst in header
Length
Width
Seat Height, Unladen
Ground Clearance
Rake
Trail
Wheelbase
Tyre, Type
Tyres, Front Specification
Tyres, Rear Specification
Fuel Capacity
Oil Capacity (w/filter)
Weight, In Running Order
Luggage Capacity - Volume
2,365 mm
890 mm
715 mm
145 mm
28
145 mm
1,615 mm
Michelin® Scorcher 31, front and rear
110/90B19,62H,BW
180/70B16,77H,BW
18.9 l
4.7 l
304 kg
0.056 m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy
CO2 Emissions Testing Method
CO2 Emissions
EC134/2014
173 Nm
4000
114 HP / 85 kW @ 5020 rpm
31.3
31.3
EU 134/2014
5.6 l/100 km
EU 134/2014
135 g/km CO2
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Optional Style Type
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Brakes, Rotor Type
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Black, Radiate Cast Aluminum
Chrome, Radiate Cast Aluminum
Chrome, Radiate Cast Aluminum
4-piston fixed front and 2-piston floating rear
Front and rear black, Split 7-spoke floating rotors
Lights (as per country regulation), Headlamp,
Tail/Stop/Front Signal Lights
Gauges
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: LED Buffett tail lamp; Front Signal Lights: LED Bullet Turn Signals
4-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
