A majestic bagger with impressive power and a commanding presence.
THIS IS THE RIGHT BIKE FOR
Riders seeking a factory custom hot rod with iconic H-D style
Milwaukee-Eight™ 114 V-Twin engine and Prodigy™ wheels
Bright white Daymaker™ LED headlamp

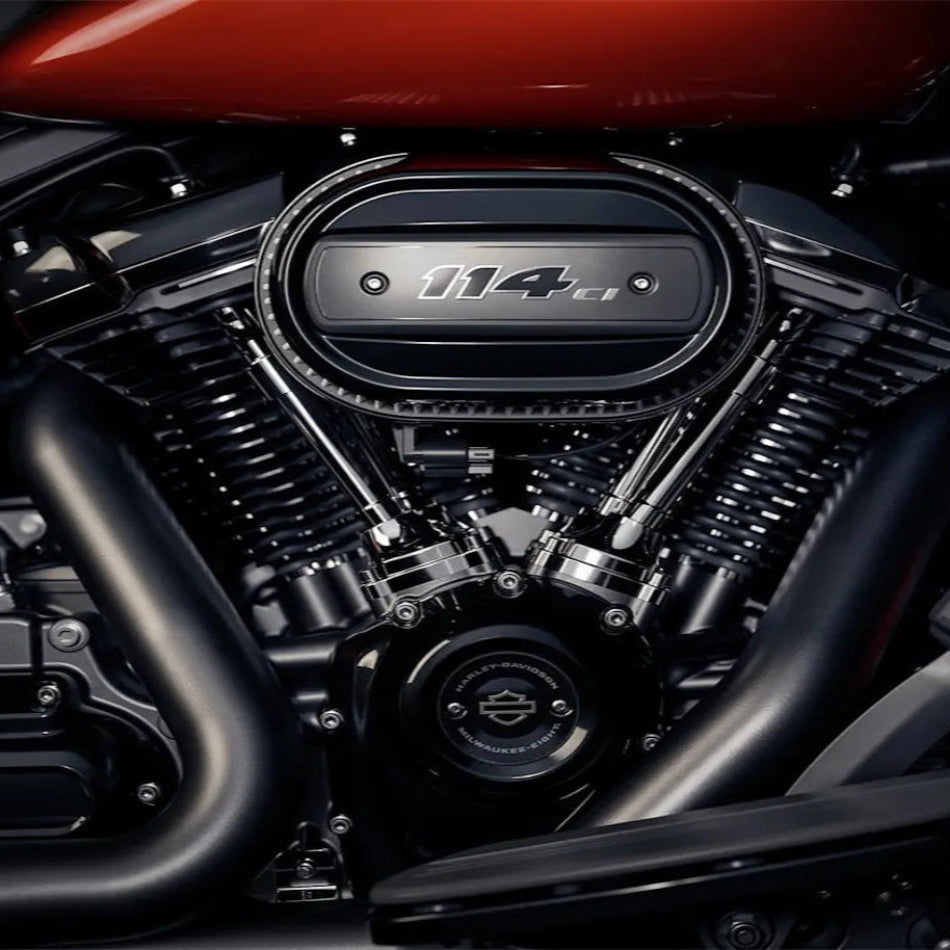

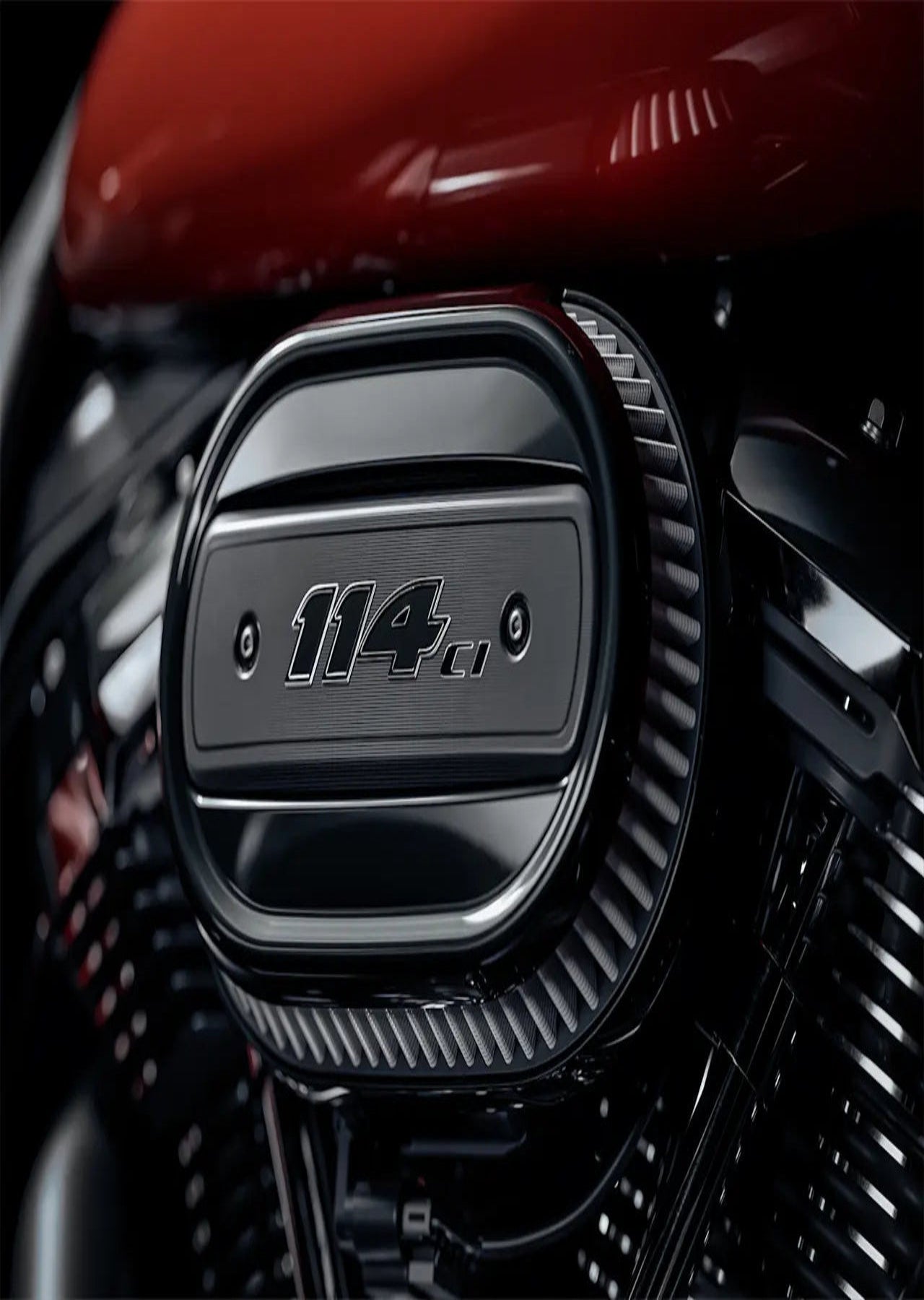

MILWAUKEE-EIGHT™ 114 ENGINE
The most displacement in standard H-D™ Touring models. You get 114 cubic inches of passing and horizon-chasing power.Next
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight® 114
102 mm
114.3 mm
1,868 cc
10.5:1
Electronic Sequential Port Fuel Injection (ESPFI)
Black, 2-1-2 dual exhaust with tapered mufflers
Length
Width
Seat Height, Unladen
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, In Running Order
Luggage Capacity-Volume
2,420 mm
990 mm
695 mm
125 mm
26
175 mm
1,625 mm
130/60B19 61H
180/55B18 80H
Dunlop® Harley-Davidson Series, bias blackwall front and rear
22.7 l
351 kg
366 kg
0.07m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy+
CO2 Emissions Testing Method
CO2 Emissions
EC 134/2014
158 Nm
3250
93 HP / 69 kW @ 5250 rpm
32
31
EU 134/2014
6.1 l/100 km
EU 134/2014
142 g/km CO2
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.593
6.65
4.938
4
3.407
2.875
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Brakes, Rotor Type
49 mm Dual Bending Valve
Premium low height hand-adjustable rear suspension
Gloss Black Prodigy
Gloss Black Prodigy
32 mm, 4-piston fixed front and rear
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Headlamp,
Tail/Stop/Front Signal Lights
Gauges
Headlamp: LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; Tail/Stop/Front Signal Lights: 8W/28W
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
READY TO RIDE THE HARLEY-DAVIDSON® ROAD KING™ SPECIAL
