The original cross-country touring machine.
THIS IS THE RIGHT BIKE FOR
117 cubic inches of displacement and high-performance tuning
Iconic bagger styling with a classic batwing fairing
Enthusiasts seeking top-of-the-line comfort and performance

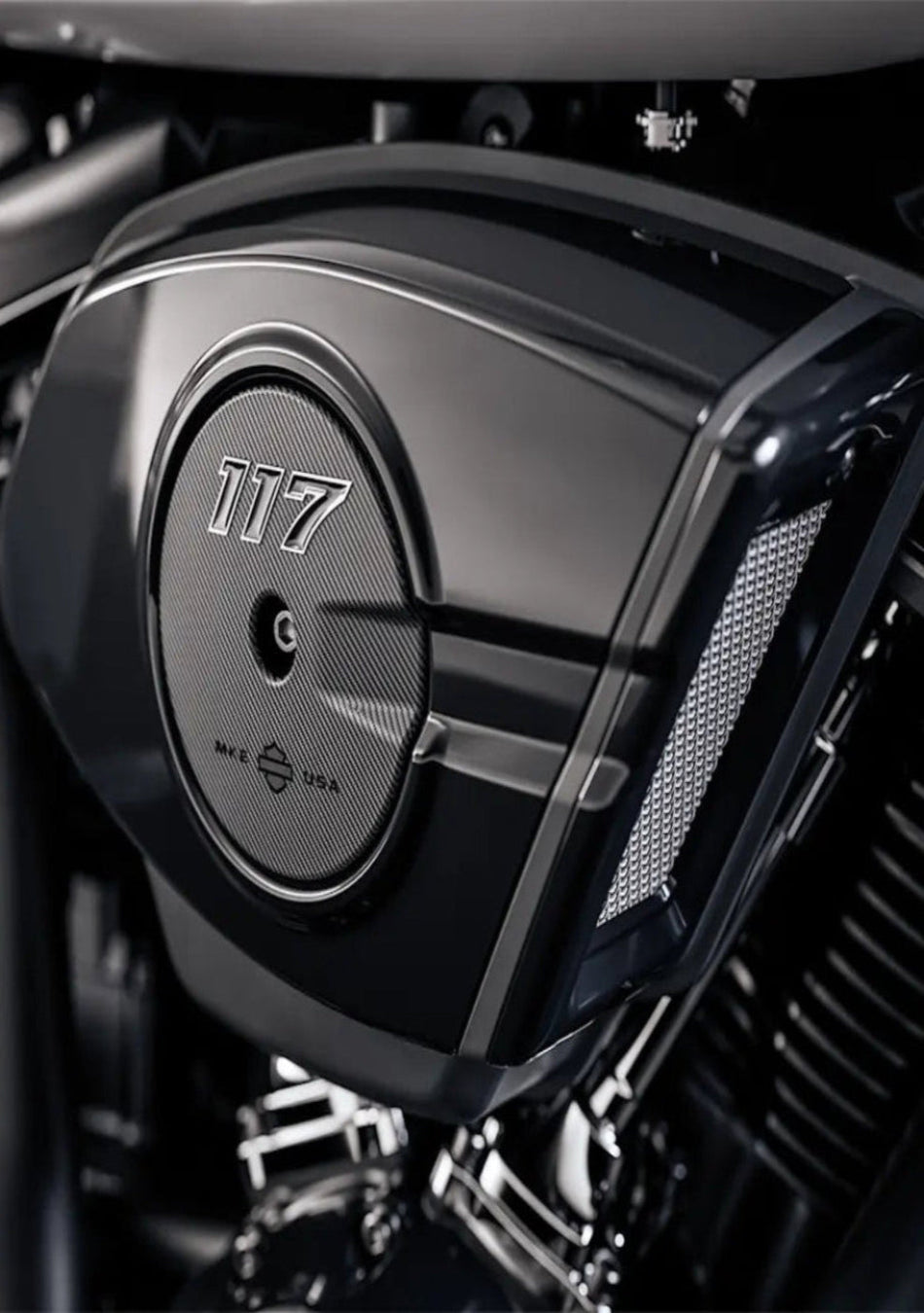

MILWAUKEE-EIGHT™ 117 V-TWIN
With increased displacement, torque, and horsepower, the 2025 engine features new liquid-cooled cylinder heads that further optimise thermal comfort for the rider, especially in low-speed riding situations and hot weather.
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight® 117
103.5 mm
114.3 mm
1,923 cc
10.3:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-1-2 dual exhaust with tapered mufflers
Length
Width
Seat Height, Unladen
Ground Clearance
Rake
Trail
Wheelbase
Tyre, Type
Tyres, Front Specification
Tyres, Rear Specification
Fuel Capacity
Oil Capacity (w/filter)
Weight, In Running Order
Luggage Capacity-Volume
2,410 mm
975 mm
715 mm
140 mm
26
170 mm
1,625 mm
Dunlop® Harley-Davidson Series, bias blackwall front and rear
130/60B19 M/C 61H
180/55B18 M/C 80H
22.7 l
4.7 l
368 kg
0.069m3
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy
CO2 Emissions Testing Method
CO2 Emissions
EC134/2014
175 Nm
3,500
107 HP / 80 kW @ 5020 rpm
32
32
EU 134/2014
6 l/100 km
EU 134/2014
143 g/km CO2
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.593
6.65
4.938
4
3.407
2.875
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Brakes, Rotor Type
49mm (1.9 in) Dual Bending Valve
3 in. (76.2 mm) Dual Outboard Emulsion with Preload Adjustability
Cast aluminum
Cast aluminum
32 mm, 4-piston fixed dual axially mounted front, and single axially mounted rear
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Headlamp,
Tail/Stop/Front Signal Lights
Gauges

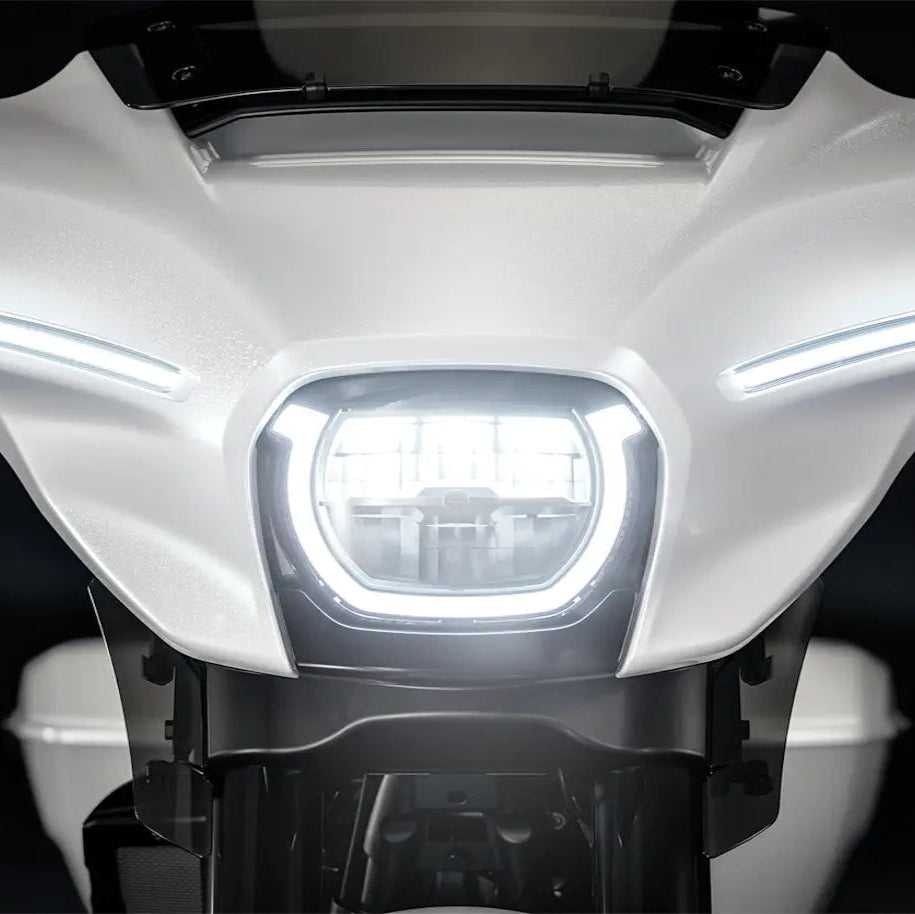

Headlamp/Tail/Stop/Front Signal Lights: LED
Digital gauges integrated within the display
