A street-eater with an appetite for power. Built with muscular style and performance.
THIS IS THE RIGHT BIKE FOR
Renegades seeking the utmost power and performance
Conquering city streets with power and agility

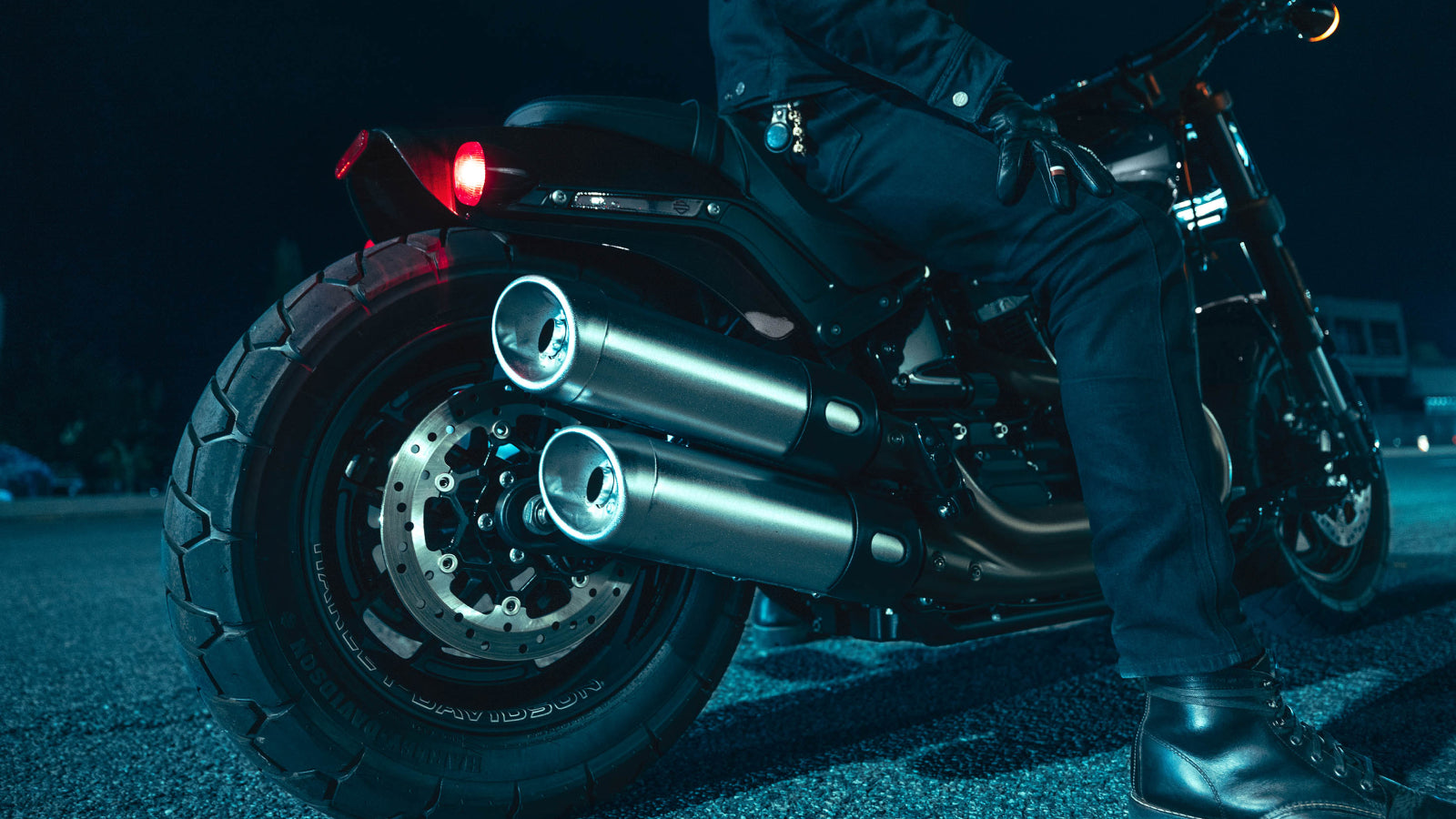

Milwaukee-Eight™ 114 V-Twin engine and custom-styled exhaust
MILWAUKEE-EIGHT™ BIG TWIN ENGINE
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.
- Engine
- Dimensions
- Performance
- Drivetrain
- Chassis
- Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ 114
102 mm
114.3 mm
1,868 cc
10.5:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-into-2 shorty dual; catalyst in muffler
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, As Shipped
Weight, In Running Order
2,340 mm
120 mm
28
132 mm
1,615 mm
150/80-16,71H,BW
180/70B16,77H,BW
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
13.2 l
4.7 l
296 kg
306 kg
Engine Torque Testing Method
Engine Torque
Engine Torque (rpm)
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
EC134/2014
155 Nm
3,500
31
32
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
9.311
6.454
4.793
3.882
3.307
2.79
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
Denim black, Structure cast aluminum with laser etched graphics
Denim black, Structure cast aluminum with laser etched graphics
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
Gauges
All LED, low beam, high beam and signature position lamp, Incandescent bullets
4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
READY TO RIDE THE HARLEY-DAVIDSON® FAT BOB™
